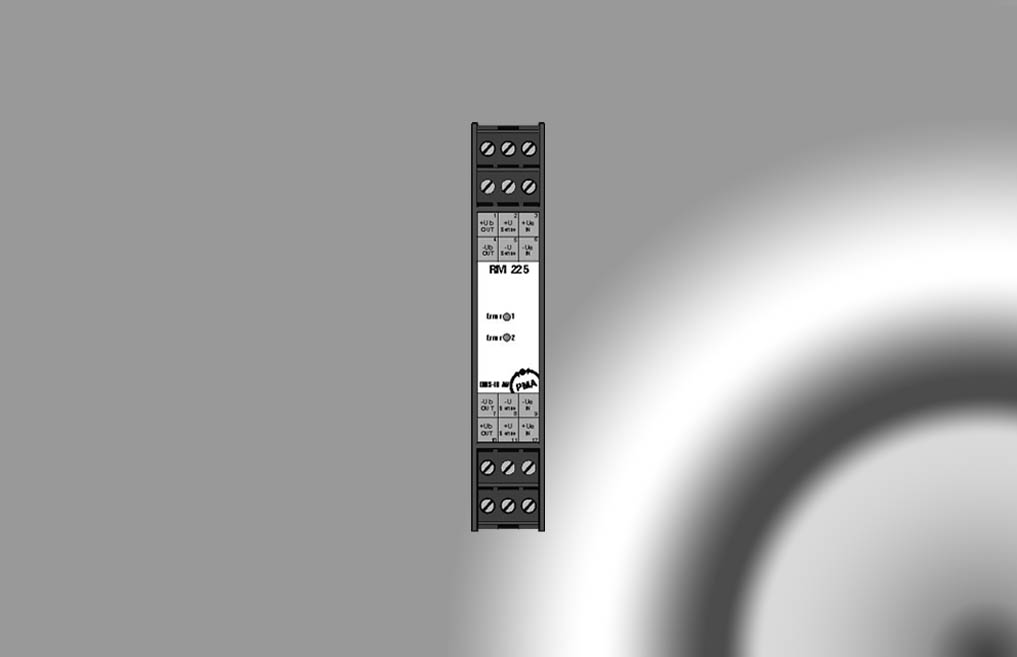

RM 225

Analog input strain gauge

	Data sheet
	中文说明书
	Functional description

• Strain Gauge transducer
• 应变仪传感器


• 6-wire connection
• 6线制连接


• resolution 18 bit
• 18位分辨率


• for applications in process weighing, dosing, force and load measurement...
• 用于重量，配料，压力和负载测量

Applications 应用
Decentralized input/output modules RM 200
Modular system

Main attributes 主要属性
2 channel per module, galvanic isolated
direct connection of strain gauge resistance in Wheatstone bridges, 6-wire connection
measuring range: -4mV/V...+4mV/V
sensor types: 1, 2, 3, 3.3 mV/V
integrated bridge excitation
resolution 18 bits
LED indicators: 2x status
screw-/plug-in terminals
plug-in module
